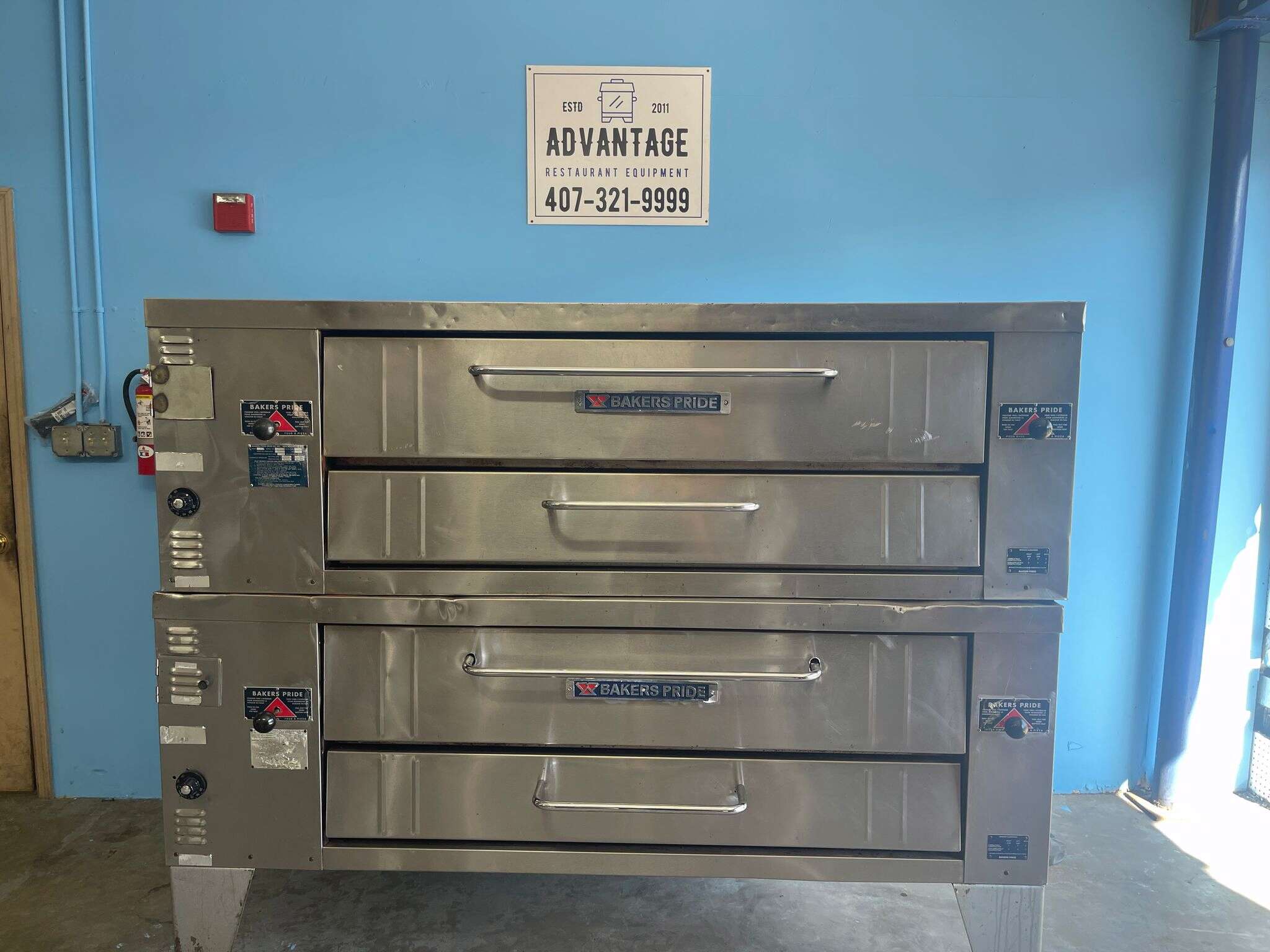

BAKERS PRIDE Super Deck Y-Series gas Deck Ovens are designed
for high volume pizza and all-purpose operations.
Ovens may be stacked two high. Oven exteriors are all heavygauge, type 403 stainless steel and are fully insulated up to 5"
(127mm) thick for cooler outer temperatures and consistent interior
temperatures.
Interior oven frame is constructed of 1/4" (6mm) heavy-duty angle
iron frame, completely welded to form a single, unitized section.
The oven body and lining are then welded to the framework.
Oven interiors are manufactured of high-heat resistant 16-gauge
aluminized steel. Doors are fully insulated, spring balanced with
tubular steel handles and will remain open or closed until moved.
All models feature independent, operator-controlled top & bottom
heat control dampers and micro slides for perfectly balanced
results.
Y Series features a 300°-650° F (149°-343°C) thermostat,
8" (203mm) interior deck height with
Cordierite hearth decks (steel decks optional) and are supported by
a 1/4" (6mm) angle iron frame.
Combination gas control incorporates a manual gas valve, pilot
safety and pressure regulator. Easily removable, slide-out, heavyduty flame diverters distribute the burner flame uniformly in the
burner chamber. A 3/4" (19mm) NPT gas connection is located on
the left side and left rear of oven - operator/installer may choose.
Heavy-duty, 7-gauge hot rolled steel legs are standard and finished
with durable Bakertone.
